Three Row Roller Slewing Bearing - Toothless Type 130

Three Row Roller Slewing Bearing - Toothless Type 130

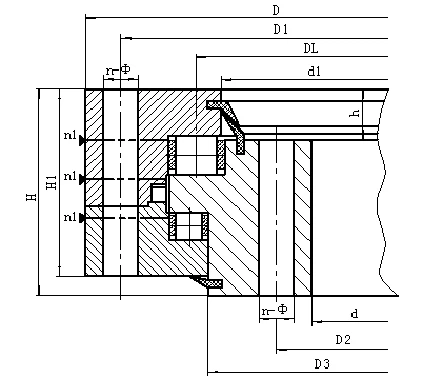

Note:

1. n1 is the nos of lubricating holes.Oil cup M10×1JB/T7940.1~JB/T7940.2.

2.Mounting hole n-φcan change to tapped hole,tooth wide can change to H-h

3. The tangential tooth force in the form is the max tooth force,the nominal tangential tooth force is 1/2 of the max one.

4. Addendum reduction coefficient is 0.2



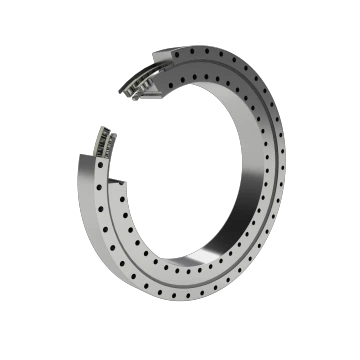

D03-jm

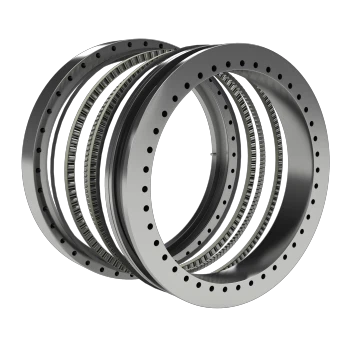

1

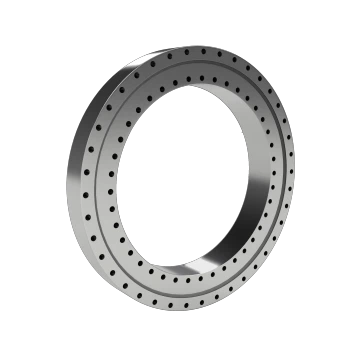

D03-fg


NO. Non Gear
DL
mm 		Dimensions  Mounting dimensions  Structural dimensions Gear data  Gear circumferential force  weight
kg
D
mm 		d
mm 		H
mm 		D1
mm 		D2
mm 		n Ф
mm 		dm
mm 		L
mm 		D3
mm 		d1
mm 		n1 H1
mm 		h
mm 		b
mm 		x m
mm 		De
mm 		z Normalizing
Z 104N 		Quenching
T 104N
1 130.25.500 634 366 148 598 402 24 18 M16 32 474 463 4 10 32 224
2 130.25.560 694 426 148 658 462 24 18 M16 32 534 523 4 10 32 240
3 130.25.630 764 496 148 728 532 28 18 M16 32 604 593 4 10 32 270
4 130.25.710 844 576 148 808 612 28 18 M16 32 684 673 4 10 32 300
5 130.32.800 964 636 182 920 680 36 22 M20 40 770 759 4 10 40 500
6 130.32.900 1064 736 182 1020 780 36 22 M20 40 870 859 4 10 40 600
7 130.32.1000 1164 836 182 1120 880 40 22 M20 40 970 959 5 10 40 680
8 130.32.1120 1284 956 182 1240 1000 40 22 M20 40 1090 1079 5 10 40 820
9 130.40.1250 1445 1055 220 1393 1107 45 26 M24 48 1213 1200 5 10 50 1200
10 130.40.1400 1595 1205 220 1543 1257 45 26 M24 48 1363 1350 5 10 50 1300
11 130.40.1600 1795 1405 220 1743 1457 48 26 M24 48 1563 1550 6 10 50 1520
12 130.40.1800 1995 1605 220 1943 1657 48 26 M24 48 1763 1750 6 10 50 1750
13 130.45.2000 2221 1779 231 2155 1845 60 33 M30 60 1967 1945 6 12 54 2400
14 130.45.2240 2461 2019 231 2395 2085 60 33 M30 60 2207 2185 6 12 54 2700
15 130.45.2500 2721 2279 231 2655 2345 72 33 M30 60 2467 2445 8 12 54 3000
16 130.45.2800 3021 2579 231 2955 2645 72 33 M30 60 2767 2745 8 12 54 3400
17 130.50.3150 3432 2868 270 3342 2958 72 45 M42 84 3104 3090 8 12 65 5000
18 130.50.3550 3268 3268 270 3742 3358 72 45 M42 84 3504 3490 8 258 65 5680
19 130.50.4000 4282 3718 270 4192 3808 80 45 M42 84 3954 3940 8 258 65 6470
20 130.50.4500 4782 4218 270 4692 4308 80 45 M42 84 4454 4440 8 258 65 7320
